Eco-Friendly Cellulose Crystallization Modification Technology

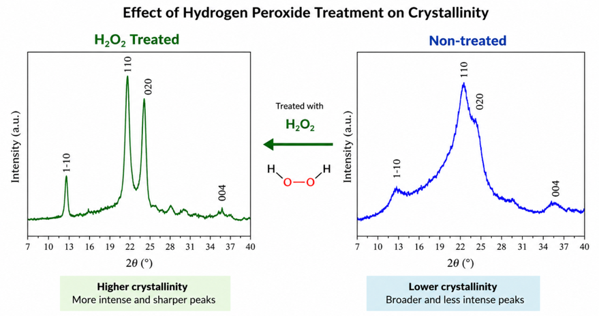

The hydrogen peroxide-treated sample shows sharper and more intense peaks, suggesting a higher degree of crystallinity compared with the untreated sample.




Invention Summary:

Cellulose is a semicrystalline biopolymer whose crystallinity, crystal size, and polymorphic structure critically determine its mechanical and functional properties in fibers and biocomposites. However, precise control over these structural parameters remains challenging due to strong hydrogen bonding and limited accessibility of ordered domains. Conventional modification methods, such as acid hydrolysis and chemical regeneration, often lack tunability, introduce impurities, or degrade polymer integrity, resulting in inconsistent material performance and limited integration into scalable manufacturing processes.

Rutgers researchers and Rowan University collaborators have developed an innovative process that uses ionic liquids and hydrogen peroxide coagulation to modulate the crystallinity and crystal size of cellulose, enabling the production of stronger biocomposite films. By adjusting the hydrogen peroxide concentration, the method allows precise tuning of cellulose properties without introducing contaminants, generating only water and oxygen as by-products. This environmentally friendly technique is applicable to a wide range of natural materials and can be readily integrated into existing cellulose hydrolysis or Lyocell processes.

Market Applications:

  • Increase level of crystallinity of cellulose
  • Cellulose hydrolysis process
  • Production of strong biocomposite films
  • Reclaim waste product into in-line production

Advantages:

  • Fine-tune cellulose crystallinity and crystal size without introduction of contaminant, with H2O and O2 as the only by-products
  • Versatile with multiple solvents
  • Could be an addition step into the cellulose hydrolysis process or Lyocell process

Publications:

  • Morales, Abneris, Shu Yang, and David Salas-de la Cruz. "Understanding the Morphology of Cellulose Nanocrystal Films via Evaporated-Induced Self-Assembly." ACS omega 10.31 (2025), https://doi.org/10.1021/acsomega.5c04239
  • Love, Stacy A., et al. "Cellulose solubility in ionic liquids and regeneration in water and hydrogen peroxide solution: a comparative examination of morphology and physicochemical properties." Cellulose 30.10 (2023), https://doi.org/10.1007/s10570-023-05258-w
  • Love, Stacy A., Xiao Hu, and David Salas-de la Cruz. "Controlling the structure and properties of semi-crystalline cellulose/silk-fibroin biocomposites by ionic liquid type and hydrogen peroxide concentration." Carbohydrate Polymer Technologies and Applications 3 (2022), https://doi.org/10.1016/j.carpta.2022.100193


Intellectual Property & Development Status: Issued U.S. Patent: 12,018,099, Available for licensing and/or research collaboration. For any business development and other collaborative partnerships contact marketingbd@research.rutgers.edu.
