Material for the Liquid-Phase Separation of Isomers of Divinylbenzenes

Background

The field of chemical separation technology is crucial for various industrial applications, particularly in the purification of chemical compounds. One such area involves the separation of isomers, which are molecules with the same molecular formula but different structural arrangements. Vinylbenzenes, for example, have multiple isomers, including p-isomers, which are often required in high purity for specific applications in the production of polymers, resins, and other chemical products. The demand for efficient and selective separation techniques has grown as industries seek to improve the quality and performance of their end products while minimizing waste and energy consumption. Current approaches to separating isomers of vinylbenzenes typically involve methods such as distillation, crystallization, or chromatography. However, these methods often face significant challenges, including high energy requirements, low selectivity, and the need for complex and expensive equipment. Distillation, for instance, is energy-intensive and may not achieve the desired purity levels due to the similar boiling points of the isomers. Crystallization can be time-consuming and may not be suitable for large-scale operations. Chromatography, while highly selective, is often costly and impractical for industrial-scale applications. These limitations highlight the need for more efficient, selective, and cost-effective solutions for the separation of vinylbenzene isomers.

Technology Overview

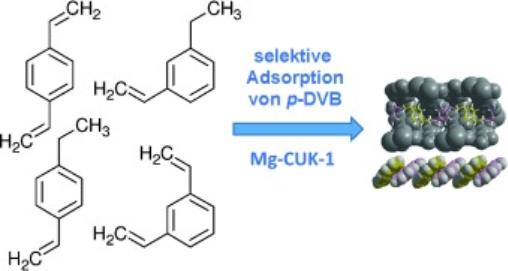

The described technology encompasses a composition and process designed for the efficient separation of p-isomers of vinylbenzenes from a mixture of isomers. The core of this technology is a porous microwaved Mg(II) 2,4-pyridinedicarboxylic acid coordination polymer, which features a one-dimensional (1-D) pore structure. This polymer exhibits reversible soft-crystal behavior, allowing it to preferentially bind to p-isomers of vinylbenzene. The process involves adding a mixture of vinylbenzene isomers to the polymer, where the p-isomers are selectively adsorbed into the 1-D pore structure. After the non-target isomers are removed, the p-isomers can be desorbed from the polymer, resulting in a purified form of p-isomers of vinylbenzene.

What differentiates this technology is its use of a microwaved Mg(II) 2,4-pyridinedicarboxylic acid coordination polymer, which offers a unique combination of selectivity and efficiency. The reversible soft-crystal behavior of the polymer allows it to adapt its structure to preferentially bind p-isomers, enhancing the purity of the separated product. Additionally, the 1-D pore structure is specifically designed to facilitate the selective adsorption and desorption processes, making the separation more efficient compared to traditional methods. This targeted approach not only improves the yield of purified p-isomers but also reduces the time and resources needed for the separation process, offering significant advantages in industrial applications.
