THE CHALLENGE
One of the major challenges facing Resistive Random Access Memory (ReRAM) technology lies in managing the intense heat generated during its operation, particularly during the reset phase of memory switching. This heat, caused by Joule heating, not only degrades the performance of individual memory cells by reducing their ability to clearly distinguish between on and off states but also spreads to nearby cells, a problem known as thermal crosstalk. As memory chips become smaller and more densely packed, this unwanted heat transfer becomes harder to control, leading to reliability issues and potential data errors. From a commercial standpoint, this limits the scalability and durability of ReRAM, making it difficult for manufacturers to deliver high-performance, energy-efficient memory products for advanced computing applications such as artificial intelligence, mobile devices, and edge computing. Addressing this issue requires innovative material choices and thermal management strategies that can support long-term device reliability without significantly increasing production complexity or cost.
OUR SOLUTION
We address a critical barrier to the commercial scalability of ReRAM technology by introducing a memory cell design that significantly improves heat management and device reliability. By integrating highly thermally conductive materials such as copper, graphene, or boron nitride within or adjacent to the crossbar electrode structure, the invention enables rapid dissipation of the heat generated during memory switching. This prevents the overheating of individual cells and reduces unwanted heat spread to neighboring cells. Unlike traditional designs that rely on low-conductivity materials like platinum, tungsten or ruthenium alone, our approach strategically enhances the electrode architecture to manage heat more efficiently without increasing manufacturing complexity. This advancement not only ensures stable operation in dense memory arrays but also extends device lifespan, making it highly attractive for next-generation data storage and computing systems where performance, reliability, and scalability are essential.

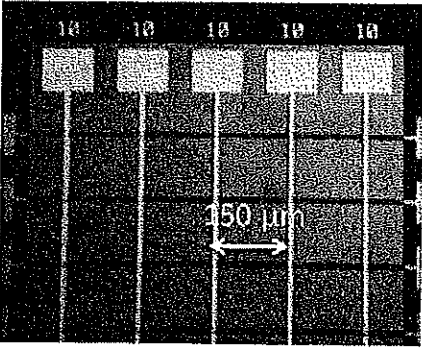

Figure: Schematic of crossbar-configured ReRAM memory array fabricated at VTech’s cleanroom facility (Whitemore Hall, 6th floor), featuring Cu and Pt electrode lines.
Advantages:
Potential Application:
